IDEAL 5221-05EP - Cutting length 520mm, Cutting capacity 80mm, fully programmable control module

Professionally equipped guillotine with a cutting length of 52 cm. Electro-mechanical drive of blade, automatic clamping system and a electronic back gauge. 10-button key pad for pre-setting of measurement, digital measurement readout and memory key for repeat cuts.

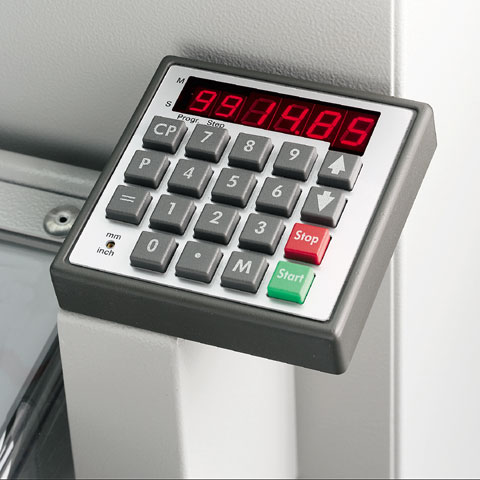

Programmable "EP" backgauge control module for 9 programs with 9 steps in each program (up to 9 repeat cuts can be integrated into a program as one single program step)

• memory key for repeat cuts
• electronic hand wheel with infinitely variable speed for manual backgauge setting
• "SET" function key for reference measurement
• optical cutting line
• transparent safety guards on front and rear tables
• adjustable blade guides
• set of side tables available at an extra cost

• Cutting length: 520 mm
• Cutting height: 80 mm
• Table depth: 520 mm
• Narrow cut: 35 mm
• Power supply/performance: 230 V/50 Hz/1,52 kW (other voltages available)
• Dimensions: H 1260 x W 855 x D 1067 mm
• Width with side tables: 1560 mm
• Weight: 262 kg (without side tables)

View product data sheet

Contact us for pricing details.
